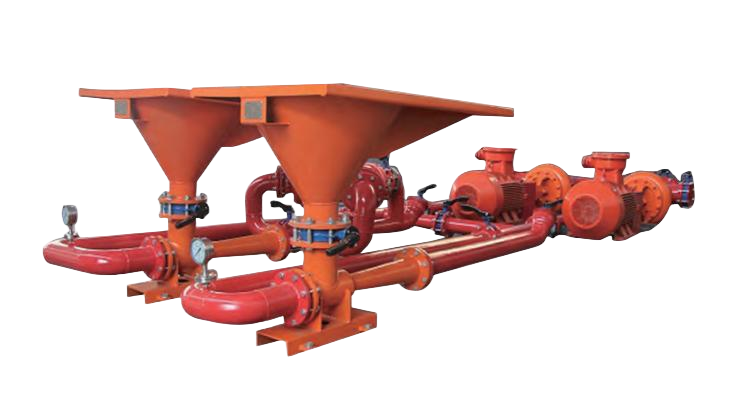

Shear Pump
Professional Solids Control Equipment
CHINA KOMAL shear pump is professional solids control equipment designed for oil and gas drilling operations. Featuring high-quality construction and reliable performance, it provides efficient solids control for drilling fluid systems in demanding drilling conditions.
Technical Features
- High quality and reliability - Consistent performance
- Replaceable parts - All parts replaceable except pump shell and impeller
- Compact structure - Small vibration, low noise, stable and reliable performance
- Long service life - Cast iron alloy, high abrasion resistance
- Mechanical seal structure - No leakage, wear resistance, long service life
- Forging casting - Shell and impeller forging casting, strong environmental adaptability
- Higher loading bearing - Long service life
Technical Parameters
| Model | KB-80 | KB-100 | KB-120 |
|---|---|---|---|
| Capacity | 80 (352 gpm) | 100 (440 gpm) | 120 (528 gpm) |
| Lift (m) | 36 | 40 | 45 |
| Efficiency | 95% | 95% | 95% |
| Motor Power | 37kw (50hp) | 45kw (60hp) | 55kw (75hp) |
| Impeller Speed | 2200 rpm | ||
| Inlet/Outlet Diameter | 6 / 5 inch | ||
| Weight | 700 kg | 760 kg | 850 kg |
| Dimension (mm) | 1030×995×1440 | 1030×995×1440 | 1065×995×1470 |
Applications
- High shear mixing - Create high shear rates for fluid mixing
- Mud processing - Break down solids and mix additives
- Fluid circulation - Maintain mud properties
- High efficiency transfer - 95% efficiency for energy savings
