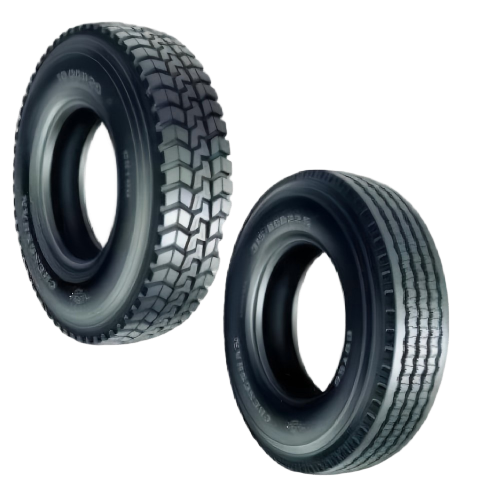

Wheels and Tires
Professional Drilling Equipment
The Wheels and Tires are designed for drilling rig chassis and mobile drilling equipment.
Key Features
- Types - All single or front single/rear double
- Single Tire - 18-22.5 tubeless
- Single Pressure - 0.70 Mpa
- Single Load - 4.975t
- Double Tire - 12-20 tubeless
- Double Pressure - 0.63 Mpa
- Double Load - 3.25t
Technical Specifications
| Single Tire Size | 18-22.5 tubeless tire |
| Single Tire Air Pressure | 0.70 Mpa |
| Single Tire Load Capacity | 4.975t |
| Single Tire Wheel Felloe | 14-22.5 |
| Double Tire Size | 12-20 tubeless tire |
| Double Tire Air Pressure | 0.63 Mpa |
| Double Tire Load Capacity | 3.25t |
| Double Tire Wheel Felloe | 8.5v-20 |
| First Axle Toe-in | 1~3mm |
| Second Axle Toe-in | 5~8mm |
| Third Axle Toe-in | 8~12mm |
Applications
- Drilling rig chassis
- Mobile drilling equipment
- Heavy-duty transport
- Oilfield vehicles
