Vortex Orbital 3000 Shaker Screen
Premium Replacement Solids Control Equipment

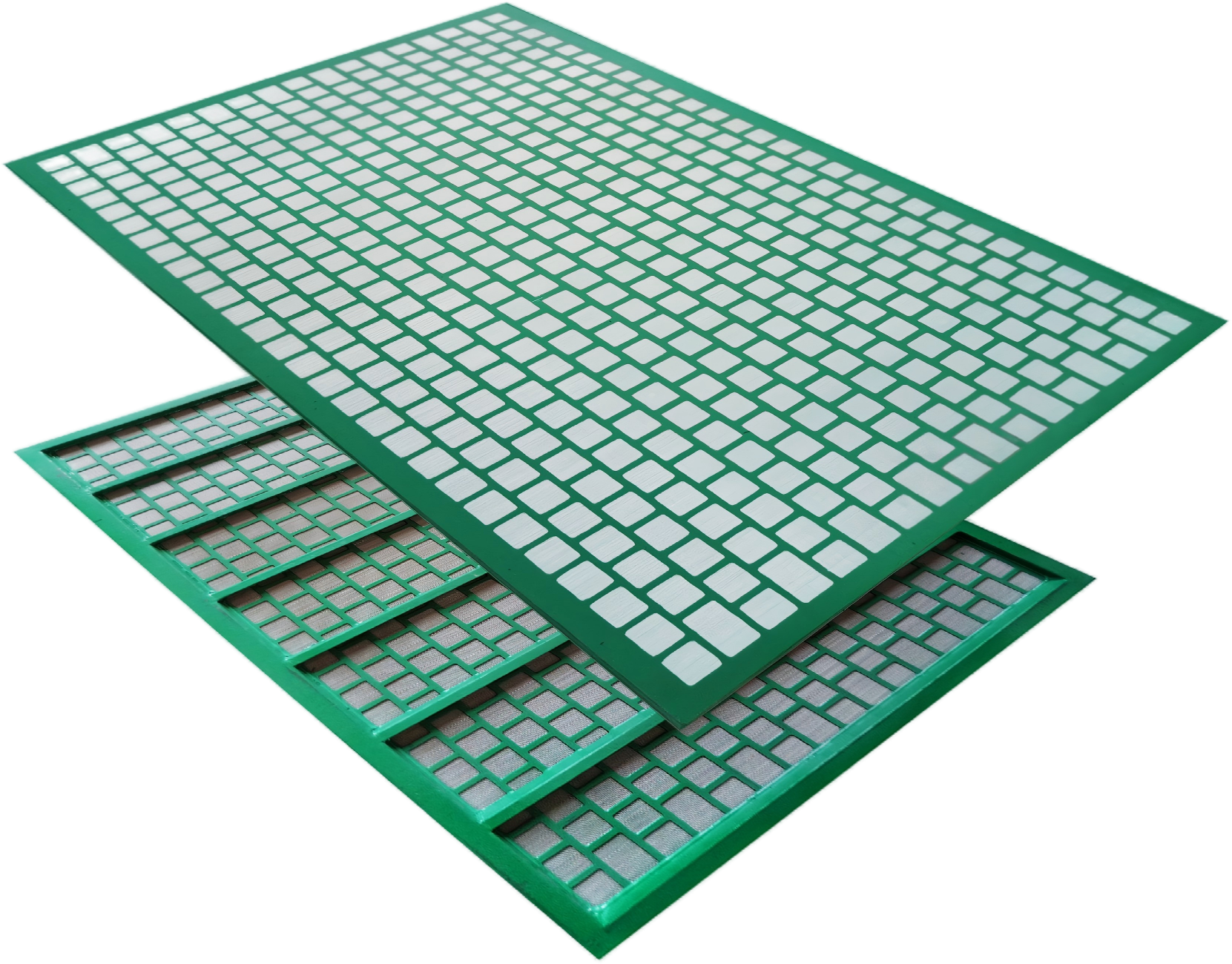

The Vortex Orbital 3000 shaker screen is a high-performance replacement screen designed for Vortex series shale shakers. Featuring rectangular perforated wear plate and SS 304/316 wire mesh cloth construction, these screens deliver superior solids control efficiency and extended service life for demanding drilling operations.
Manufactured with premium stainless steel 304/316/316L materials and Q235 steel frame, compliant with API RP 13C standards, Vortex Orbital 3000 screens are available in API 20 to API 325 mesh designations. Compatible with Vortex BSBS Linear Power Side-By-Side Shaker, Vortex B DHC Double Header Mud Cleaner, and Vortex B CD VGS™ Linear Cutting Drier systems.
Product Features
- Premium Materials: Stainless steel 304/316/316L wire mesh for superior corrosion resistance
- Robust Frame: Q235 steel frame construction for enhanced durability
- Rectangular Perforated Wear Plate: Advanced wear plate design for improved screening efficiency
- SS Wire Mesh Cloth: High-quality screen cloth technology for optimal separation
- API RP 13C Compliant: Meets industry standards for drilling fluid solids control equipment
- Multiple Screen Types: XL and XR series available for various applications
- Wide API Range: API 20 to API 325 mesh designations for diverse solids control needs
- Vortex Compatibility: Perfect fit for Vortex BSBS, B DHC, and B CD VGS™ systems
- Reliable Performance: Proven design for demanding drilling operations
- Cost-Effective: Competitive pricing with reliable quality
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | KM-Vortex |
| Mesh Material | Stainless Steel 304/316/316L |
| Frame Material | Q235 Steel |
| Screen Type | XL, XR |
| Standard | API RP 13C |
| API RP 13C Designation | API 20 – API 325 |
| Plate Design | Rectangular Perforated Wear Plate |
| Compatible Shakers | Vortex BSBS, B DHC, B CD VGS™ |
| Package | Paper carton, wooden case |
| Supply Ability | 10000 pieces per month |
Performance Parameters
| Screen Designation | API Designation | Conductance | D100 (μm) | Non-Blank Area (sq.ft) |
|---|---|---|---|---|
| KM-Vortex-A325 | API 325 | 0.39 | 44 | 7.2 |
| KM-Vortex-A270 | API 270 | 0.67 | 57 | 7.2 |
| KM-Vortex-A230 | API 230 | 0.71 | 68 | 7.2 |
| KM-Vortex-A200 | API 200 | 1.32 | 73 | 7.2 |
| KM-Vortex-A170 | API 170 | 1.34 | 83 | 7.2 |
| KM-Vortex-A140 | API 140 | 1.89 | 101 | 7.2 |
| KM-Vortex-A120 | API 120 | 1.89 | 101 | 7.2 |
| KM-Vortex-A100 | API 100 | 2.66 | 164 | 7.2 |
| KM-Vortex-A80 | API 80 | 2.76 | 193 | 7.2 |
| KM-Vortex-A70 | API 70 | 3.33 | 203 | 7.2 |
| KM-Vortex-A60 | API 60 | 4.10 | 256.8 | 7.2 |
| KM-Vortex-A50 | API 50 | 6.62 | 268 | 7.2 |
| KM-Vortex-A40 | API 40 | 8.64 | 439 | 7.2 |
| KM-Vortex-A35 | API 35 | 9.69 | 538 | 7.2 |
| KM-Vortex-A20 | API 20 | 10.88 | 809 | 7.2 |
Note: D100 = Particles this size and larger will normally be discarded. Conductance Number represents the ease with which liquid can flow through the screen (larger values = higher volume handling).
Compatible Shaker Models
- Vortex BSBS: Linear Power Side-By-Side Shaker
- Vortex B DHC: Double Header Mud Cleaner
- Vortex B CD VGS™: Linear Cutting Drier
Application Scenarios
- Oil & Gas Drilling: Primary and secondary solids control for drilling fluid systems
- Onshore Drilling Rigs: Reliable performance in land-based drilling operations
- Offshore Platforms: Corrosion-resistant materials suitable for marine environments
- Directional Drilling: Efficient solids removal for complex well trajectories
- Deep Well Drilling: High-performance screening for demanding deep well applications
- Horizontal Drilling: Enhanced solids control for horizontal and extended reach wells
- Workover Operations: Efficient mud cleaning for well maintenance and repair
- Mud Cleaner Systems: Integrated solids control for drilling fluid treatment
