OIL WELL A1700PT-L Mud Pump Parts

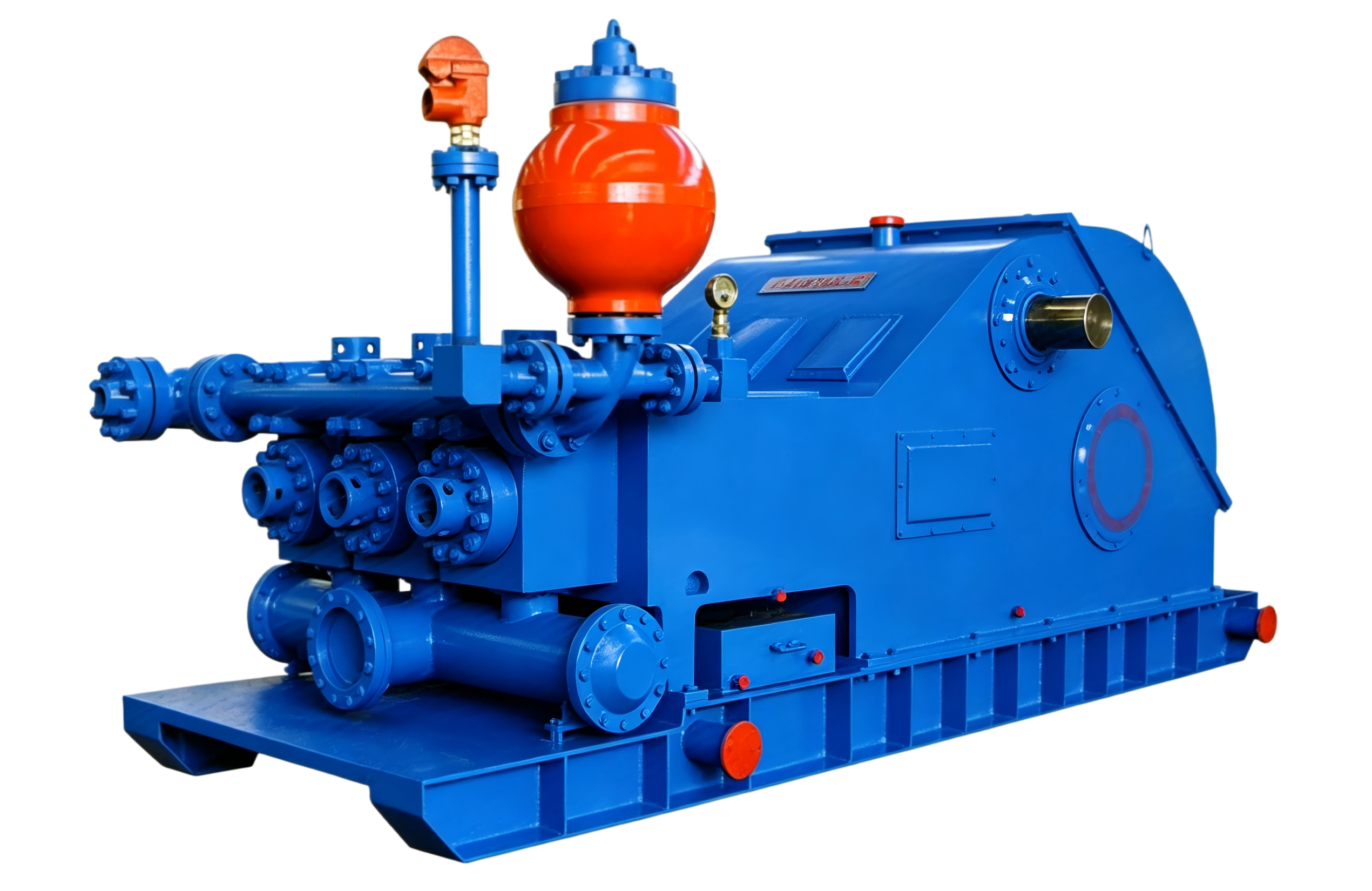

CHINA KOMAL supplies comprehensive spare parts for OIL WELL A1700PT-L "L" shaped mud pumps,
including fluid end modules, liners, liner packing, valves, valve seats, pistons, rods, and all wear components.
All A1700PT-L parts are manufactured to OEM specifications with strict quality control for
reliable performance and extended service life in demanding drilling conditions.
Our OIL WELL A1700PT-L parts are fully interchangeable with original equipment and offer
superior value with competitive pricing and immediate availability.
Fluid End Module and Accessories
| Item |
Part No. |
Description |
Qty per Pump |
| - | 8488-1A | Complete Assembly | 3 |
| - | 8488-1 | Fluid Module, Discharge - Studded (included items 1-5) | 3 |
| 1 | - | Fluid Module - Discharge | 3 |
| 2 | 4016-96 | Stud w/Nut - Frame | 12 |
| 3 | 4016-97 | Stud w/Nut - Suction Module | 18 |
| 4 | 4016-3 | Stud w/Nut - Discharge Manifold | 12 |
| 5 | 4015-2 | Stud w/Nut - Valve Cover | 72 |
| - | 8488-2 | Fluid Module, Suction - Studded (included items 5-6) | 3 |
| 6 | - | Fluid Module - Suction | 3 |
| 7 | 2988 | Seal - Module | 3 |
| 8 | 10-300-201 | Seal - Suction Manifold | 3 |
| 9 | 8488-5 | Dowel Pin | 6 |
| 10 | 4475 | Threaded Flange | 6 |
| 11 | 4575 | Screw Gland | 6 |
| - | 4575-1A | Valve Cover Plug Assembly (included items 12-15) | 6 |
| 12 | 4575-1 | Plug - Valve Cover | 6 |
| 13 | 4775 | Valve Guide | 6 |
| 14 | 4018-88 | Screw - Valve Guide | 12 |
| 15 | 4700-I | Insert - Valve Guide | 6 |
| 16 | P129 | Seal - Valve Cover Plug | 3 |
| 17 | 8488-1 | Liner Retainer Flange | 3 |
| 18 | 4017-4 | Capscrew - Liner Retainer | 24 |
| 19 | 6588-1 | Nut - Liner Retainer (Large OD Liner, 0284-XX) | 3 |
| 20 | 8488-7 | Set Screw - Liner Retainer | 9 |
| 21 | 8488-4 | Plate - Wear | 3 |
| 22 | 2974-1 | Seal - Wear Plate | 3 |
Liners & Liner Packing (7 1/2× 12)
| Size |
LINER |
LINER PACKING |
| 4" | 0284-40 | KMG-0753 |
| 4½" | 0284-44 | KMG-0754 |
| 5" | 0284-50 | KMG-0742 |
| 5½" | 0284-54 | KMG-0743 |
| 6" | 0284-60 | KMG-0745 |
| 6¼" | 0284-62 | KMG-0770 |
| 6½" | 0284-64 | KMG-0746 |
| 6¾" | 0284-66 | KMG-0755 |
| 7" | 0284-70 | KMG-0756 |
| 7¼" | 0284-72 | KMG-0757 |
| 7½" | 0284-74 | KMG-0758 |
*Also available in small OD 0283-XX
| Gaskets |
Part No. |
| Valve Cover Gasket | KMG-0750 |
| Cylinder Head Gasket | N/A |
Valves & Valve Seats
| Type |
4 WEB |
FULL OPEN |
G2 |
3 WEB |
ROUGHNECK |
| VALVE (Urethane Insert) | U5C-EEF | 7FO-V1 | 1560985 | 202PZL482A | RN7-V1 |
| VALVE (Rubber Insert) | 5C-EEF | N/A | N/A | 202PZL483A | N/A |
| VALVE SEAT | 7DD-B1 | 7FO-S1 | 1561370 | 202PZL039 | RN7-S1 |
| VALVE SPRING | 5710-110 | 5710-115L | 1560702 | 5710-110 | 5710-110L |
| VALVE INSERT (Urethane) | UDD-7B | 7FO-SI | 1560557 | 201PZL106 | RN7-I |
| VALVE INSERT (Rubber) | DD-7B | N/A | N/A | 202PZL106 | N/A |
| VALVE SEAT PULLER HEAD | 1700-7 | 1700-7FO | 1700-7G2 | 1700-7R | 1700-7FO |
Pistons
| Piston Size |
Bonded Pistons |
Imperial Piston |
Imperial Rubber Kits |
Rubber Bonded |
Long Life (Urethane) |
| 4" | RT-400 | I40HK14/15 | I40HK | RB-400 | LL-400 |
| 4½" | RT-440 | I44HK14/15 | I44HK | RB-440 | LL-440 |
| 5" | RT-500 | I50HB14/15 | I50HB | RB-500 | LL-500 |
| 5½" | RT-540 | I54HB14/15 | I54HB | RB-540 | LL-540 |
| 6" | RT-600 | I60HB14/15 | I60HB | RB-600 | LL-600 |
| 6½" | RT-640 | I64HL14/15 | I64HL | RB-640 | LL-640 |
| 7" | RT-700 | I70HL14/15 | I70HL | RB-700 | LL-700 |
| 7½" | N/A | I74HL14/15 | I74HL | N/A | N/A |
*1/4 Size are available upon request
Rods
| Item |
Part No. |
| PISTON ROD | 0283-C |
| SUB ROD | 0283-A |
| CONNECTING STUD | 0283-D |
| EXTENSION ROD | 18-0284 |
| ROD CLAMP | 24-0284 |
| PISTON ROD NUT | 7403364 |
