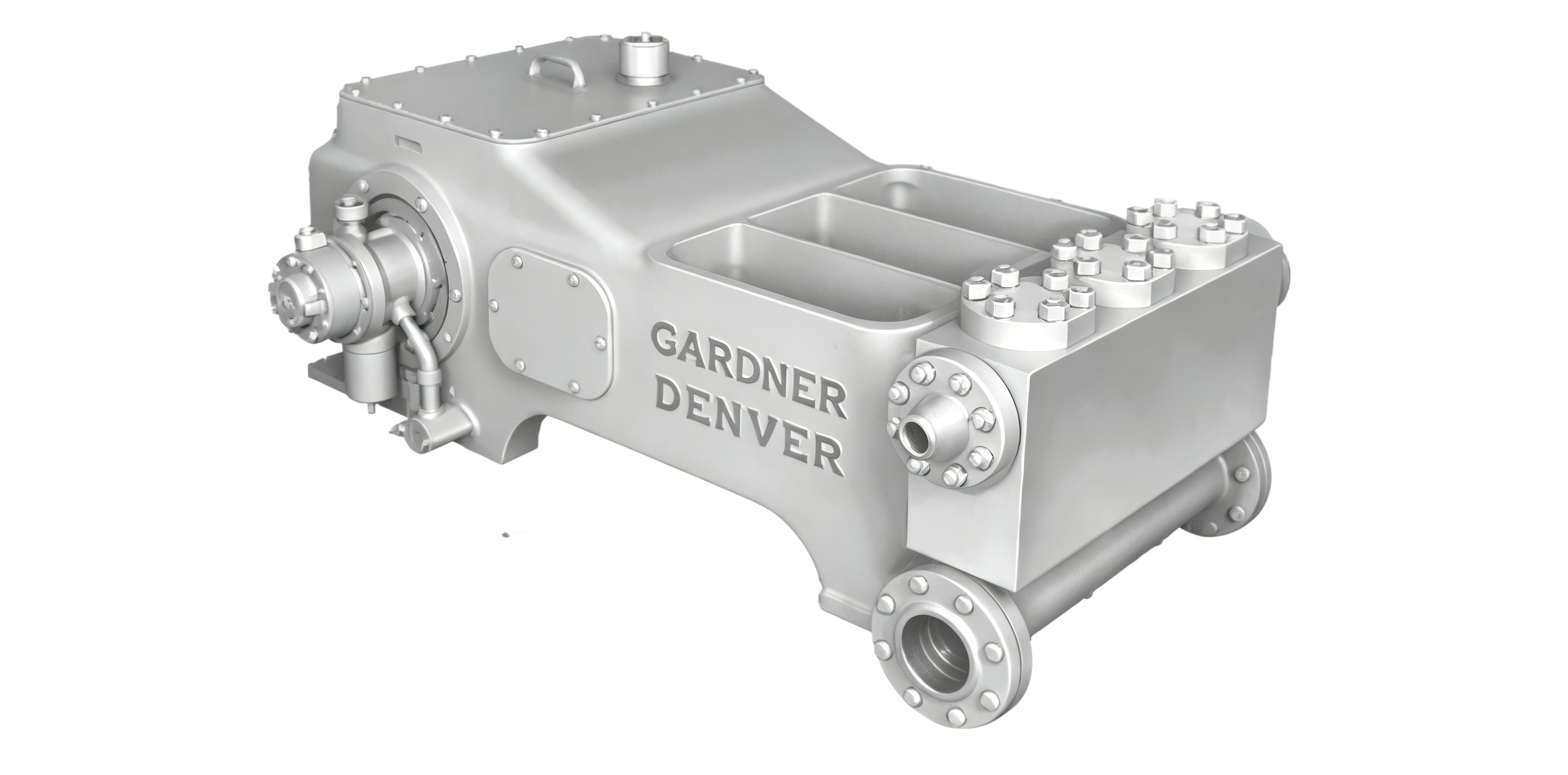

Gardner Denver TGE Mud Pump Parts
CHINA KOMAL supplies comprehensive spare parts for Gardner Denver TGE mud pumps,
including liners, liner packing, valves, valve seats, pistons, rods, and all wear components.
All TGE parts are manufactured to OEM specifications with strict quality control for
reliable performance and extended service life in demanding drilling conditions.
Our Gardner Denver TGE parts are fully interchangeable with original equipment and offer
superior value with competitive pricing and immediate availability.
Liners & Liner Packing (4×5)
| Size |
Liner Part No. |
Liner Packing Part No. |
| 3" | 1190-30 | KMG-0174 |
| 3½" | 1190-34 | KMG-0174 |
| 4" | 1190-40 | KMG-0174 |
| Gaskets |
Part No. |
| Valve Cover Gasket | KMG-0799 |
| Cylinder Head Gasket | KMG-0799 |
Valve Assembly
| Type |
Part No. |
| VALVE ASSEMBLY (Complete) | ARIOA-9803S |
| VALVE (Urethane Insert) | ARV-10A |
| VALVE (Rubber Insert) | AR1-09 |
| VALVE SEAT PULLER HEAD | 1700-165N |
Pistons
| Piston Size |
Bonded Pistons |
Imperial Piston |
Imperial Rubber Kits |
| 3" | N/A | I30HK10 | I30HK |
| 3½" | N/A | I34HK10 | I34HK |
| 4" | RT-400 | I40HK10 | I40HK |
*1/4 Size are available upon request
| Piston Size |
Rubber Bonded |
Long Life (Urethane) |
| 3" | N/A | N/A |
| 3½" | N/A | N/A |
| 4" | RB-400 | LL-400 |
Rods
| Item |
Part No. |
| PISTON ROD | 0204 |
| SUB ROD | N/A |
| EXTENSION ROD | N/A |
| ROD CLAMP | N/A |
| PISTON ROD NUT | 7403224 |
