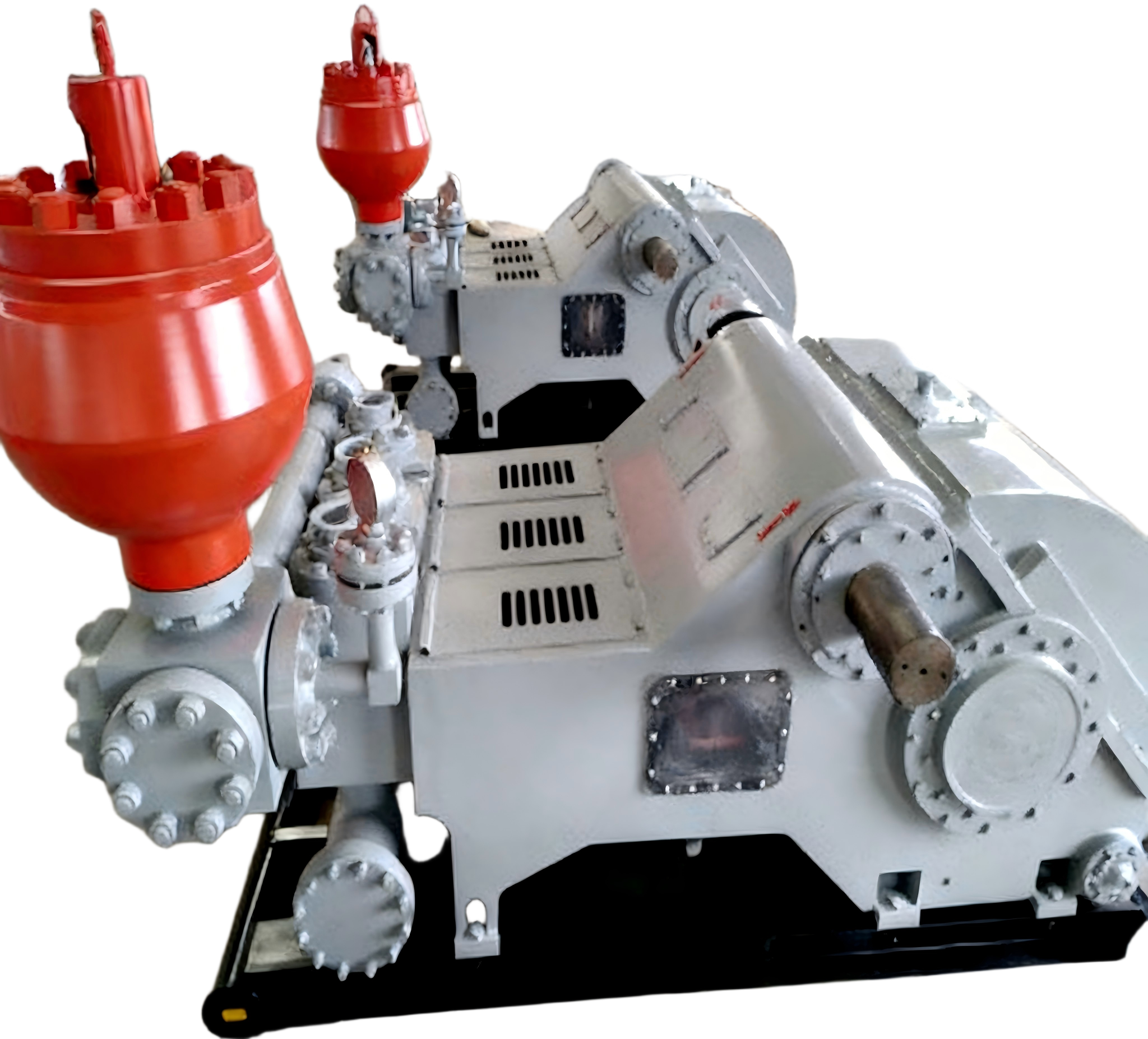

Gardner Denver FY Mud Pump Parts
CHINA KOMAL supplies comprehensive spare parts for Gardner Denver FY mud pumps,
including liners, liner packing, valves, valve seats, pistons, rods, and all wear components.
All FY parts are manufactured to OEM specifications with strict quality control for
reliable performance and extended service life in demanding drilling conditions.
Our Gardner Denver FY parts are fully interchangeable with original equipment and offer
superior value with competitive pricing and immediate availability.
Liners & Liner Packing (7-1/2 x 10)
| Size |
Supreme |
Super Service |
Assembly |
| 4" | - | - | - |
| 4-1/4" | - | - | - |
| 4-1/2" | 05441450 | - | 07918154 |
| 4-3/4" | - | - | - |
| 5" | 05441500 | - | 07918154 |
| 5-1/4" | - | - | - |
| 5-1/2" | 05441550 | 100144302 | 07918154 |
| 5-3/4" | - | - | - |
| 6" | 05441600 | 100144500 | 07918154 |
| 6-1/4" | - | - | - |
| 6-1/2" | 05441650 | 100144708 | 07918154 |
| 6-3/4" | - | - | - |
| 7" | 05441700 | 100144906 | 07918154 |
| 7-1/4" | - | - | - |
| 7-1/2" | 05441750 | 100145101 | 07918154 |
| 7-3/4" | - | - | - |
| 8" | - | - | - |
Pistons
| Size |
Supreme B 3" |
FlexLip |
Supreme L 3-3/4" |
| 5" | 012100202 | 011100500 | - |
| 5-1/2" | 012100400 | 011100609 | - |
| 6" | 012100608 | 011100708 | - |
| 6-1/2" | 012100806 | 011100805 | - |
| 7" | 012101101 | - | - |
| 7-1/2" | 012101287 | - | - |
*1/4 Size are available upon request
Valves, Seats, Springs & Inserts
| Type |
Roughneck |
Roughneck HP |
Supreme |
Super Service |
| VALVE - White Lightning | 9700368 | 9700356 | 060155042 | - |
| VALVE - Urethane Insert | 9700250 | 9700354 | 060155041 | - |
| VALVE - Rubber Insert | 9700293 | N/A | 060155033 | 039100607 |
| SEAT | 9702563 | 9702563 | 061101903 | 040101404 |
| SPRING | 055409007 | 055409007 | 055407603 | 055406409 |
| SPRING - Stainless | - | - | - | - |
| INSERT - Urethane | 9705228 | FPO71 | 062400338 | - |
| INSERT - Rubber | 9705244 | N/A | 062400239 | 053400404 |
Gaskets & Rod Packing
| Type |
OEM |
L Style |
| Valve Cover | 07916526 | - |
| Cylinder Head | 07916562 | - |
| Plug Seal | - | - |
| Rod Packing | 07915072 | - |
| Liner Seal | 07918108 | - |
| Lantern Ring | 07919108 | - |
| Split Gland | - | - |
| Solid Gland | - | - |
| Junk Ring | - | - |
| Lug Nut | - | 1515080 |
Liner & Seat Puller Assemblies
| Item |
Part No. |
| Puller Assembly 1 | M 1060 |
| Puller Head | 8401985 |
| Liner Puller | NOIH3700 (3"-9" Bore) |
Piston Rods & Crosshead Extension Rods
| Piston Rod |
Crosshead Rod |
Rod Taper |
Rod Nut |
| 1550535 | - | API 3 | 005402052 |
1- Does not include puller head
