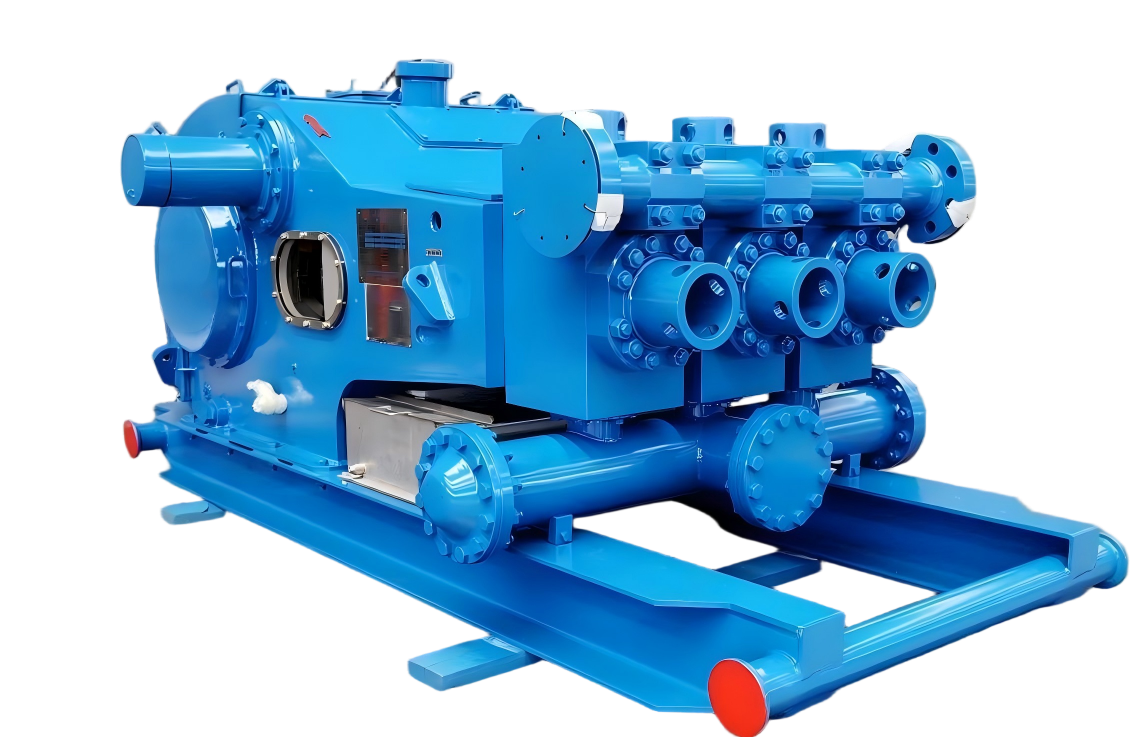

EMSCO FB1600 Mud Pump Parts
CHINA KOMAL supplies comprehensive spare parts for EMSCO FB1600 mud pumps,
including liners, liner packing, valves, valve seats, pistons, rods, and all wear components.
All FB1600 parts are manufactured to OEM specifications with strict quality control for
reliable performance and extended service life in demanding drilling conditions.
Our EMSCO FB1600 parts are fully interchangeable with original equipment and offer
superior value with competitive pricing and immediate availability.
Liners & Liner Packing (7-1/2 × 12)
| Size |
LINER |
LINER PACKING |
| 4" | 2145-40 | KMG-0800 |
| 4½" | 2145-44 | KMG-0800 |
| 5" | 2145-50 | KMG-0800 |
| 5½" | 2145-54 | KMG-0800 |
| 6" | 2145-60 | KMG-0800 |
| 6¼" | 2145-62 | KMG-0800 |
| 6½" | 2145-64 | KMG-0800 |
| 6¾" | 2145-66 | KMG-0800 |
| 6¾" | 2145-68 | KMG-0800 |
| 7" | 2145-70 | KMG-0800 |
| 7½" | 2145-74 | KMG-0800 |
| Gaskets |
Part No. |
| Valve Cover Gasket | KMG-0741 |
| Cylinder Head Gasket | KMG-0801 |
Valves & Valve Seats
| Type |
4 WEB |
FULL OPEN |
G2 |
3 WEB |
ROUGHNECK |
| VALVE (Urethane Insert) | U5C-EEF | 7FO-V1 | 1560985 | 202PZL482A | RN7-V1 |
| VALVE (Rubber Insert) | 5C-EEF | N/A | N/A | 202PZL483A | N/A |
| VALVE SEAT | 7DD-B1 | 7FO-S1 | 1561370 | 202PZL039 | RN7-S1 |
| VALVE SPRING | 5710-115 | 5710-115L | 1560702 | 5710-115 | 5710-115L |
| VALVE INSERT (Red Thunder) | UDD-7BHT | N/A | N/A | N/A | N/A |
| VALVE INSERT (Urethane) | UDD-7B | 7FO-SI | 1560557 | 201PZL106 | RN7-I |
| VALVE INSERT (Rubber) | DD-7B | N/A | N/A | 202PZL106 | N/A |
| VALVE SEAT PULLER HEAD | 1700-7 | 1700-7FO | 1700-7G2 | 1700-7R | 1700-7FO |
Pistons
| Piston Size |
Bonded Pistons |
Imperial Piston |
Imperial Rubber Kits |
Rubber Bonded |
Long Life (Urethane) |
| 4" | RT-400 | I40HK14/15 | I40HK | RB-400 | LL-400 |
| 4½" | RT-440 | I44HK14/15 | I44HK | RB-440 | LL-440 |
| 5" | RT-500 | I50HB14/15 | I50HB | RB-500 | LL-500 |
| 5½" | RT-540 | I54HB14/15 | I54HB | RB-540 | LL-540 |
| 6" | RT-600 | I60HB14/15 | I60HB | RB-600 | LL-600 |
| 6½" | RT-640 | I64HL14/15 | I64HL | RB-640 | LL-640 |
| 7" | RT-700 | I70HL14/15 | I70HL | RB-700 | LL-700 |
| 7½" | N/A | I74HL14/15 | I74HL | N/A | N/A |
*1/4 Size are available upon request
Rods
| Item |
Part No. |
| PISTON ROD | 2145 |
| EXTENSION ROD | 18-0145 |
| ROD CLAMP | 24-0145 |
| PISTON ROD NUT | 7403384 |
Fluid End Module and Accessories
| Item |
Part No. |
Description |
Qty per Pump |
| 1 | 8318-0357-00 | Fluid Module, Studded (Included Items 2-8) | 0 |
| 2 | 8318-0358-00 | Fluid Module, Only | 3 |
| 3 | 7507-2210-00 | Stud - Threaded Ring | 30 |
| 4 | 7507-2201-00 | Stud - Frame | 18 |
| 5 | 7801-0830-17 | Nut - Frame, Threaded Ring | 48 |
| 6 | 7507-2013-00 | Stud - Liner Lock | 36 |
| 7 | 7801-0810-18 | Nut - Liner Lock | 36 |
| 8 | 7507-2108-00 | Stud - Discharge Manifold | 12 |
| 9 | 7801-0830-24 | Nut - Discharge Manifold | 12 |
| 10 | 8397-0803-00 | Retainer Plate | 3 |
| 11 | 8397-0575-00 | Upper Valve Guide | 3 |
| 12 | 8318-0039-00 | Valve Cover | 3 |
| 13 | 8318-0382-00 | Cylinder Head | 3 |
| 14 | 8318-0381-00 | Cylinder Threaded Ring | 3 |
| 15 | 8318-0380-00 | Lock Bolt - Lower Valve Guide | 3 |
| 16 | 8318-0384-00 | Cylinder Head Plug | 3 |
| 17 | 8318-0354-00 | Lower Valve Guide with Bushing | 3 |
| 18 | 8318-0383-00 | Alignment Ring | 3 |
| 19 | 8318-0397-00 | Liner Lock | 3 |
| 20 | 8318-0398-00 | Liner Threaded Ring | 3 |
| 21 | 8318-0373-00 | Seal - Wear Plate, Liner | 3 |
| 22 | 7602-1800-25 | Seal - Discharge Manifold | 3 |
| 23 | 7602-1800-61 | Seal - Suction Manifold | 3 |
| 24 | 7501-0051-00 | Retainer Bolt | 12 |
| 25 | 8318-0399-00 | Seal - Cylinder Head Plug | 3 |
| 26 | 8318-0092-00 | Seal - Valve Pot Cover | 3 |
| 27 | 8318-0096-00 | Valve Guide Bushing | 3 |
| 28 | 8318-0365-00 | Wear Plate | 3 |
¹Offered in Plain Carbon or Stainless Steel
