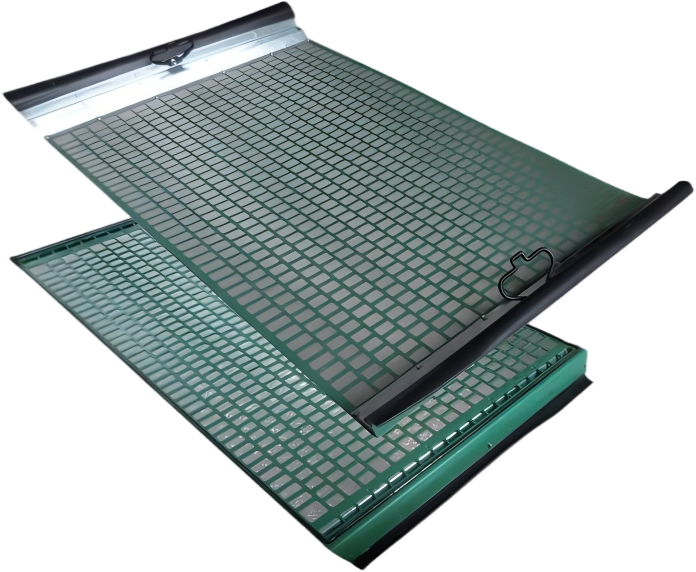

Derrick FLC 500 PWP Shaker Screen
Premium Replacement Solids Control Equipment
The Derrick FLC 500 PWP (Perforated Wear Plate) shaker screen is a high-performance replacement screen designed for Derrick FLC (Flo-Line Cleaner) 500 series shale shakers. Featuring rectangular perforated wear plate construction and quick-lock tension system, these screens deliver superior solids control efficiency and extended service life.
Manufactured with premium stainless steel 304/316/316L materials and compliant with API RP 13C standards, FLC 500 PWP screens are available in API 120 to API 325 mesh designations. With a working life of 400-450 hours and 1-year warranty, these screens provide reliable performance for demanding drilling operations.
Product Features
- PWP Construction: Perforated wear plate design for enhanced durability and screening efficiency
- Premium Materials: Stainless steel 304/316/316L for superior corrosion resistance
- Rectangular Perforation: Optimized perforated mesh shape for improved fluid handling
- API RP 13C Compliant: Meets industry standards for drilling fluid solids control equipment
- Quick-Lock Tension System: Easy installation and secure screen tensioning
- Handy Handle Design: Convenient operation and screen replacement
- Extended Service Life: 400-450 hours working life for reduced replacement costs
- 1-Year Warranty: Quality assurance and manufacturer support
- Multiple Series Options: DX, DF, HP series available for various applications
- Wide API Range: API 120 to API 325 mesh designations for diverse solids control needs
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | KM-PWP 500 |
| Material | Stainless Steel 304/316/316L |
| Construction Type | PWP (Perforated Wear Plate) |
| Perforated Mesh Shape | Rectangle |
| Standard | API RP 13C |
| API RP 13C Designation | API 120 – API 325 |
| Series Options | DX, DF, HP (Optional) |
| Warranty Period | 1 Year |
| Working Life | 400–450 Hours |
| Compatible Shakers | Derrick FLC 503/504/513/514 Series |
Performance Parameters
| Screen Designation | API Designation | Conductance | D100 (μm) | Layers | Non-Blank Area (sq.ft) |
|---|---|---|---|---|---|
| KM-PWP 500-A325 | API 325 | 0.39 | 44 | 2/3 | 4.05 |
| KM-PWP 500-A270 | API 270 | 0.67 | 57 | 2/3 | 4.05 |
| KM-PWP 500-A230 | API 230 | 0.71 | 68 | 2/3 | 4.05 |
| KM-PWP 500-A200 | API 200 | 1.32 | 73 | 2/3 | 4.05 |
| KM-PWP 500-A170 | API 170 | 1.34 | 83 | 2/3 | 4.05 |
| KM-PWP 500-A140 | API 140 | 1.89 | 101 | 2/3 | 4.05 |
| KM-PWP 500-A120 | API 120 | 1.89 | 134 | 2/3 | 4.05 |
| KM-PWP 500-A100 | API 100 | 2.66 | 164 | 2/3 | 4.05 |
| KM-PWP 500-A80 | API 80 | 2.76 | 193 | 2/3 | 4.05 |
| KM-PWP 500-A70 | API 70 | 3.33 | 203 | 2/3 | 4.05 |
| KM-PWP 500-A60 | API 60 | 4.10 | 268 | 2/3 | 4.05 |
| KM-PWP 500-A50 | API 50 | 5.17 | 285 | 2/3 | 4.05 |
| KM-PWP 500-A40 | API 40 | 8.64 | 439 | 2/3 | 4.05 |
| KM-PWP 500-A35 | API 35 | 9.69 | 538 | 2/3 | 4.05 |
| KM-PWP 500-A20 | API 20 | 10.88 | 809 | 2/3 | 4.05 |
Note: D100 = Particles this size and larger will normally be discarded. Conductance Number represents the ease with which liquid can flow through the screen (larger values = higher volume handling).
Compatible Shaker Models
- Derrick FLC 503: Standard shale shaker for primary solids control
- Derrick FLC 504: Enhanced capacity shale shaker for high-volume drilling
- Derrick FLC 503 Drying: Drying shaker for cuttings treatment
- Derrick FLC 504 Drying: High-capacity drying shaker for efficient solids removal
- Derrick FLC 513: Advanced shale shaker with improved performance
- Derrick FLC 514: Premium shale shaker for demanding applications
- Derrick FLC 513 VE: Vapor Extraction system for enhanced fluid recovery
- Derrick FLC 514 VE: High-capacity Vapor Extraction system
Application Scenarios
- Oil & Gas Drilling: Primary and secondary solids control for drilling fluid systems
- Onshore Drilling Rigs: Reliable performance in land-based drilling operations
- Offshore Platforms: Corrosion-resistant materials suitable for marine environments
- Directional Drilling: Efficient solids removal for complex well trajectories
- Deep Well Drilling: High-performance screening for demanding deep well applications
- Horizontal Drilling: Enhanced solids control for horizontal and extended reach wells
- Workover Operations: Efficient mud cleaning for well maintenance and repair
- Geothermal Drilling: Suitable for high-temperature geothermal drilling applications
