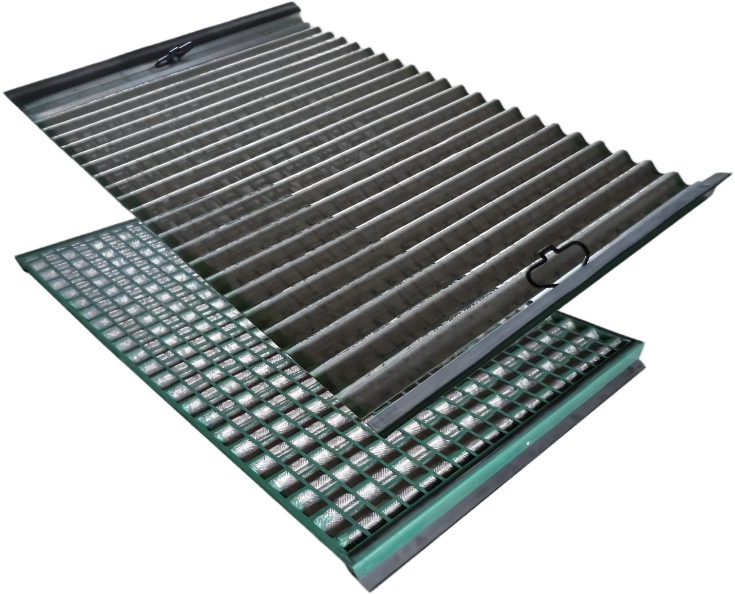

Derrick FLC 500 Wave Shaker Screen
Premium Replacement Solids Control Equipment
The Derrick FLC 500 Wave shaker screen is a high-performance replacement screen designed for Derrick FLC (Flo-Line Cleaner) 500 series shale shakers. Featuring Wave Type construction with rectangular perforated mesh shape, these screens deliver superior solids control efficiency and extended service life for demanding drilling operations.
Manufactured with premium stainless steel 304/316/316L materials, compliant with API RP 13C standards, FLC 500 Wave screens are available in API 20 to API 325 mesh designations. Compatible with Derrick FLC 503/504 shakers, drying shakers, and FLC 513/514 VE (Vapor Extraction) systems. With a working life of 400-450 hours and 1-year warranty, these screens provide reliable performance.
Product Features
- Premium Materials: Stainless steel 304/316/316L wire mesh for superior corrosion resistance
- Wave Type Construction: Advanced wave structure for enhanced screening performance
- Rectangular Perforated Mesh: Optimized mesh shape for improved solids control
- API RP 13C Compliant: Meets industry standards for drilling fluid solids control equipment
- Multiple Series Options: DX, DF, HP series available for various applications
- Wide API Range: API 20 to API 325 mesh designations for diverse solids control needs
- Derrick Compatibility: Perfect fit for Derrick FLC 500 series shale shakers
- Vapor Extraction Compatible: Works with FLC 513/514 VE systems
- Extended Service Life: 400-450 hours working life for reduced replacement costs
- 1-Year Warranty: Quality assurance and manufacturer support
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | KM-Wave 500 |
| Material | Stainless Steel 304/316/316L |
| Construction Type | Wave Type |
| Perforated Mesh Shape | Rectangle |
| Standard | API RP 13C |
| API RP 13C Designation | API 20 – API 325 |
| Series Options | DX, DF, HP (Optional) |
| Warranty Period | 1 Year |
| Working Life | 400–450 Hours |
| Compatible Shakers | Derrick FLC 503/504/513/514 Series |
| Application | Shaker, Drying Shaker, VE System |
Compatible Shaker Models
- Derrick FLC 503: Standard shale shaker for drilling fluid solids control
- Derrick FLC 504: High-capacity shale shaker for demanding operations
- Derrick FLC 503 Drying: Drying shaker for cuttings treatment
- Derrick FLC 504 Drying: High-capacity drying shaker
- Derrick FLC 513: Advanced shale shaker with improved performance
- Derrick FLC 514: Premium shale shaker for demanding applications
- Derrick FLC 513 VE: Vapor Extraction system for enhanced fluid recovery
- Derrick FLC 514 VE: High-capacity Vapor Extraction system
Application Scenarios
- Oil & Gas Drilling: Primary and secondary solids control for drilling fluid systems
- Onshore Drilling Rigs: Reliable performance in land-based drilling operations
- Offshore Platforms: Corrosion-resistant materials suitable for marine environments
- Directional Drilling: Efficient solids removal for complex well trajectories
- Deep Well Drilling: High-performance screening for demanding deep well applications
- Horizontal Drilling: Enhanced solids control for horizontal and extended reach wells
- Workover Operations: Efficient mud cleaning for well maintenance and repair
- Vapor Extraction Systems: Integrated solids control for enhanced fluid recovery
