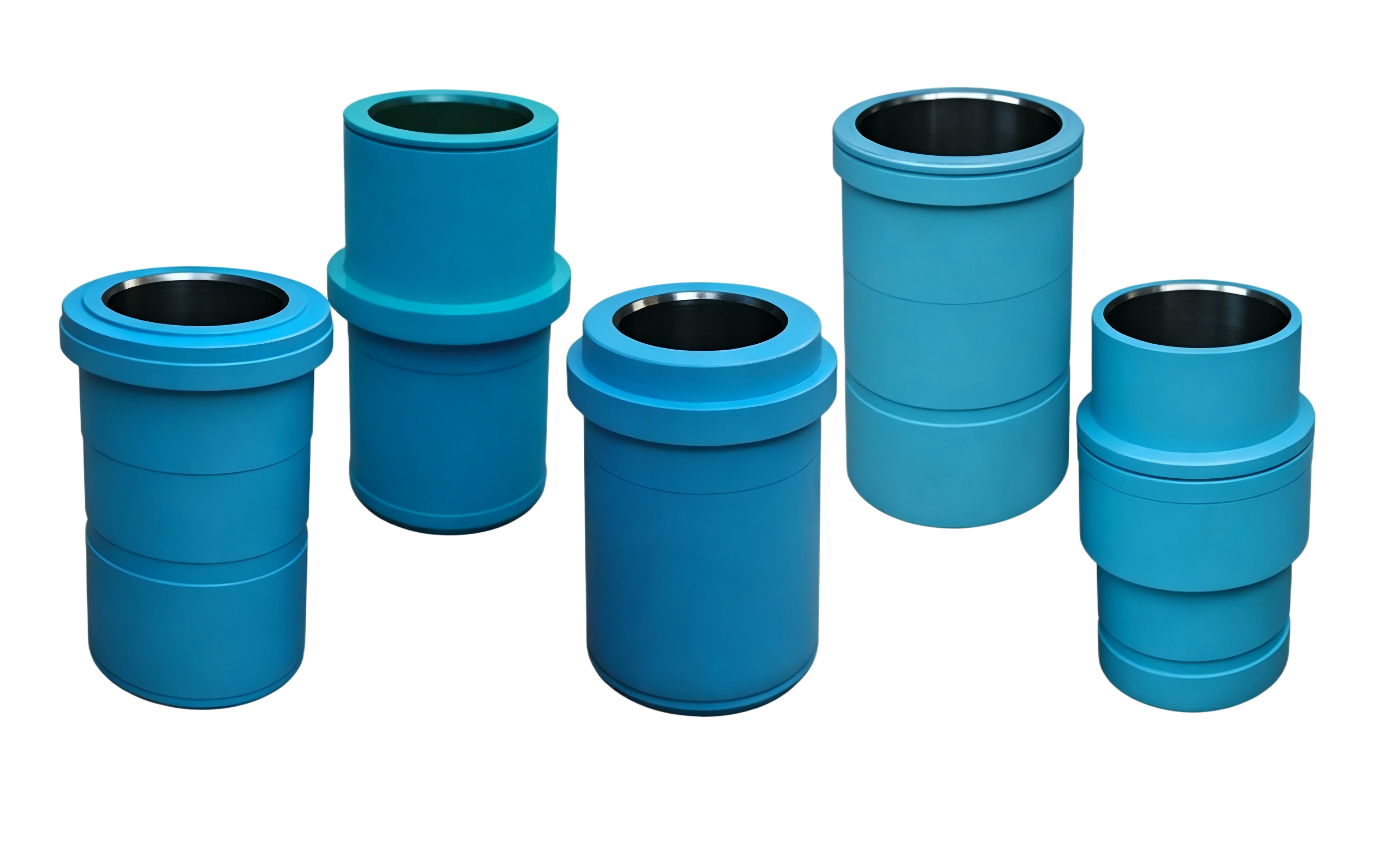

Cylinder Liner
Cylinder liners are critical wear-resistant components of the mud pump fluid end, available in bi-metal, single-metal, and ceramic types. Precision honed inner surface ensures optimal piston sealing. Ceramic liners offer 3-5 times longer service life than conventional metal liners. Available in 13 specifications from 100mm to 178mm diameter.
Product Specifications
| Type | Material | Feature |
|---|---|---|
| Bi-Metal | Outer: Ductile Iron; Inner: High-Chromium Alloy | Excellent wear resistance and impact toughness |
| Single-Metal | High-Strength Alloy Steel | Cost-effective and durable |
| Ceramic | Zirconia Ceramic | 3-5 times longer life than metal liners |
| Inner Surface | Precision Honed | Optimal piston sealing |
| Specifications | 13 sizes available | 100mm to 178mm diameter |
Key Features
- Three Types Available - Bi-Metal, Single-Metal, and Ceramic
- Bi-Metal Liner - Ductile iron outer with high-chromium alloy inner lining
- Ceramic Liner - Zirconia ceramic with 3-5 times longer service life
- Precision Honed - Inner surface for optimal piston sealing
- 13 Specifications - From 100mm to 178mm diameter
- Compatible Models - EMSCO F Series, LANSHI 3NB Series, GARDNER DENVER PZ Series, IDECO T Series, NATIONAL, OILWELL
Compatible Models
EMSCO: F-500, F-800, F-1000, F-1300, F-1600, FB-1300, FB-1600, F-2200HL, D-375, D-700
LANSHI: 3NB-1300C, 3NB-1000, 3NB-800, 3NB-500C, 3NB1600
GARDNER DENVER: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
IDECO: T-500, T-800, T-1000, T-1300, T-1600
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-200, K-700, K-500A
OILWELL: A-350PT, A-560PT, A-600PT, A-850PT, A-1100P, A-1400PT, A-1700PT
