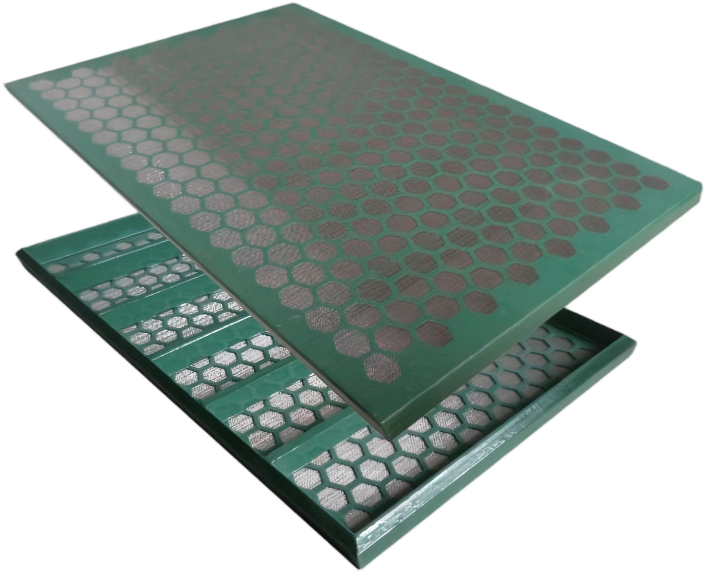

Brandt VSM 300 Scalping Shaker Screen
Premium Replacement Solids Control Equipment
The Brandt VSM 300 Scalping shaker screen is a high-performance replacement screen designed for Brandt VSM 300 shale shakers. Used as the top deck screen (3 screens) of the VSM 300 shaker, these screens feature hexagonal perforated wear plate with SS 304/316 wire mesh cloth, ribbed back supporting frame, PT frame, or composite supporting frame construction for superior scalping and solids control efficiency.
Manufactured with premium stainless steel 304/316/316L materials and Q235 steel/composite body, available in single, dual, or triple layered configurations. Compliant with API RP 13C standards, VSM 300 Scalping screens are available in API 10 to API 325 mesh designations. With a working life of 400-450 hours and 1-year warranty, these screens provide reliable performance for coarse solids removal and primary separation.
Product Features
- Premium Materials: Stainless steel 304/316/316L wire mesh for superior corrosion resistance
- Dual Body Options: Q235 steel body or composite body available
- Hexagonal Perforated Wear Plate: Advanced wear plate design for improved scalping efficiency
- Multiple Layer Options: Single, dual, or triple layered screen configurations
- Ribbed Back Design: Supporting frame with ribbed back for enhanced structural integrity
- PT Frame Technology: Composite supporting frame for superior performance
- SS Wire Mesh Cloth: High-quality screen cloth technology for optimal separation
- API RP 13C Compliant: Meets industry standards for drilling fluid solids control equipment
- Extended Service Life: 400-450 hours working life for reduced replacement costs
- 1-Year Warranty: Quality assurance and manufacturer support
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | KM-VSM 300S |
| Material | Stainless Steel 304/316/316L |
| Body Material | Q235 Steel / Composite |
| Screen Layered | Single, Dual, or Triple Layered |
| Standard | API RP 13C |
| API RP 13C Designation | API 10 – API 325 |
| Series Options | XR, XL (Optional) |
| Warranty Period | 1 Year |
| Working Life | 400–450 Hours |
| Compatible Shakers | Brandt VSM 300 (Top Deck - 3 Screens) |
| Plate Design | Hexagonal Perforated Wear Plate |
| Application | VSM 300 Shaker, Scalping Screen, Mud Cleaner |
Performance Parameters
| Screen Designation | Mesh Type | API Designation | Conductance | D100 (μm) | Layers | Non-Blank Area (sq.ft) |
|---|---|---|---|---|---|---|
| KM-VSM 300S-A200 | XR | API 200 | 1.12 | 80.1 | 1/2/3 | 4.6 |
| KM-VSM 300S-A170 | XR | API 170 | 1.49 | 94.5 | 1/2/3 | 4.6 |
| KM-VSM 300S-A140 | XR | API 140 | 1.57 | 106.5 | 1/2/3 | 4.6 |
| KM-VSM 300S-A120 | XR | API 120 | 2.10 | 134.7 | 1/2/3 | 4.6 |
| KM-VSM 300S-A100 | XR | API 100 | 2.66 | 164 | 1/2/3 | 4.6 |
| KM-VSM 300S-A80 | XR | API 80 | 2.76 | 193 | 1/2/3 | 4.6 |
| KM-VSM 300S-A70 | XR | API 70 | 3.33 | 203 | 1/2/3 | 4.6 |
| KM-VSM 300S-A60 | XR | API 60 | 4.10 | 268 | 1/2/3 | 4.6 |
| KM-VSM 300S-A50 | XR | API 50 | 5.17 | 285 | 1/2/3 | 4.6 |
| KM-VSM 300S-A40 | XR | API 40 | 8.64 | 439 | 1/2/3 | 4.6 |
| KM-VSM 300S-A35 | XR | API 35 | 9.69 | 538 | 1/2/3 | 4.6 |
| KM-VSM 300S-A20 | XR | API 20 | 10.88 | 809 | 1/2/3 | 4.6 |
| KM-VSM 300S-A10 | XR | API 10 | 40.92 | 1957 | 1/2/3 | 4.6 |
Note: D100 = Particles this size and larger will normally be discarded. Conductance Number represents the ease with which liquid can flow through the screen (larger values = higher volume handling).
Compatible Shaker Models
- Brandt VSM 300: Top deck screen (3 screens) for VSM 300 shale shaker
- Brandt VSM 300 Mud Cleaner: Compatible with VSM 300 mud cleaner systems
Application Scenarios
- Oil & Gas Drilling: Primary scalping and coarse solids removal for drilling fluid systems
- Onshore Drilling Rigs: Reliable performance in land-based drilling operations
- Offshore Platforms: Corrosion-resistant materials suitable for marine environments
- Directional Drilling: Efficient coarse solids removal for complex well trajectories
- Deep Well Drilling: High-performance scalping for demanding deep well applications
- Horizontal Drilling: Enhanced scalping control for horizontal and extended reach wells
- Workover Operations: Efficient coarse solids removal for well maintenance
- Mud Cleaner Systems: Integrated scalping and solids control for drilling fluid treatment
