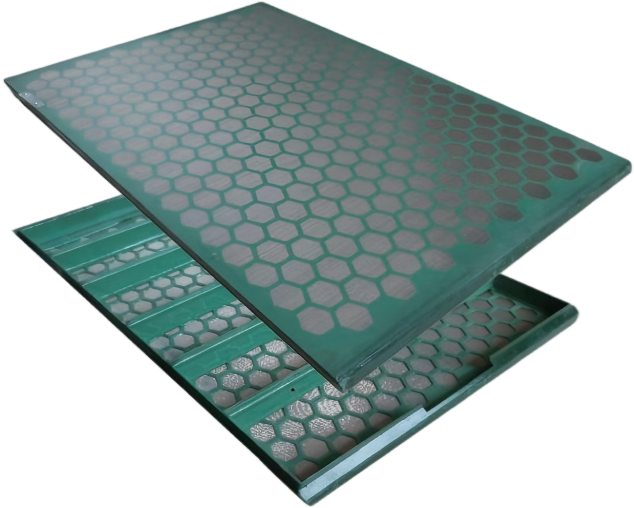

Brandt VSM 300 Primary Shaker Screen
Premium Replacement Solids Control Equipment
The Brandt VSM 300 Primary shaker screen is a high-performance replacement screen designed for Brandt VSM 300 shale shakers. Used as the lower deck screen (4 screens) of the VSM 300 shaker, these screens feature SS 304/316 wire mesh cloth with ribbed back supporting frame, PT frame, or composite supporting frame construction for superior solids control efficiency.
Manufactured with premium stainless steel 304/316/316L materials and Q235 steel/composite body, available in single, dual, or triple layered configurations with 7° screen angle. Compliant with API RP 13C standards, VSM 300 Primary screens are available in API 20 to API 325 mesh designations. With a working life of 400-450 hours and 1-year warranty, these screens provide reliable performance.
Product Features
- Premium Materials: Stainless steel 304/316/316L wire mesh for superior corrosion resistance
- Dual Body Options: Q235 steel body or composite body available
- Multiple Layer Options: Single, dual, or triple layered screen configurations
- Optimized Screen Angle: 7° screen angle for improved solids conveyance
- Ribbed Back Design: Supporting frame with ribbed back for enhanced structural integrity
- PT Frame Technology: Composite supporting frame for superior performance
- SS Wire Mesh Cloth: Advanced screen cloth technology for optimal separation
- API RP 13C Compliant: Meets industry standards for drilling fluid solids control equipment
- Extended Service Life: 400-450 hours working life for reduced replacement costs
- 1-Year Warranty: Quality assurance and manufacturer support
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | KM-VSM 300P |
| Material | Stainless Steel 304/316/316L |
| Body Material | Q235 Steel / Composite |
| Screen Layered | Single, Dual, or Triple Layered |
| Screen Angle | 7° |
| Standard | API RP 13C |
| API RP 13C Designation | API 20 – API 325 |
| Series Options | XR, XL (Optional) |
| Warranty Period | 1 Year |
| Working Life | 400–450 Hours |
| Compatible Shakers | Brandt VSM 300 (Lower Deck - 4 Screens) |
| Application | VSM 300 Shaker, Mud Cleaner |
Performance Parameters
| Screen Designation | Mesh Type | API Designation | Conductance | D100 (μm) | Layers | Non-Blank Area (sq.ft) |
|---|---|---|---|---|---|---|
| KM-VSM 300P-A325 | XR | API 325 | 0.39 | 44 | 1/2/3 | 4.6 |
| KM-VSM 300P-A270 | XR | API 270 | 0.67 | 57 | 1/2/3 | 4.6 |
| KM-VSM 300P-A230 | XR | API 230 | 0.71 | 68 | 1/2/3 | 4.6 |
| KM-VSM 300P-A200 | XR | API 200 | 1.32 | 73 | 1/2/3 | 4.6 |
| KM-VSM 300P-A170 | XR | API 170 | 1.34 | 83 | 1/2/3 | 4.6 |
| KM-VSM 300P-A140 | XR | API 140 | 1.89 | 101 | 1/2/3 | 4.6 |
| KM-VSM 300P-A120 | XR | API 120 | 1.89 | 134 | 1/2/3 | 4.6 |
| KM-VSM 300P-A100 | XR | API 100 | 2.66 | 164 | 1/2/3 | 4.6 |
| KM-VSM 300P-A80 | XR | API 80 | 2.76 | 193 | 1/2/3 | 4.6 |
| KM-VSM 300P-A70 | XR | API 70 | 3.33 | 203 | 1/2/3 | 4.6 |
| KM-VSM 300P-A60 | XR | API 60 | 4.10 | 268 | 1/2/3 | 4.6 |
| KM-VSM 300P-A50 | XR | API 50 | 5.17 | 285 | 1/2/3 | 4.6 |
| KM-VSM 300P-A40 | XR | API 40 | 8.64 | 439 | 1/2/3 | 4.6 |
| KM-VSM 300P-A35 | XR | API 35 | 9.69 | 538 | 1/2/3 | 4.6 |
| KM-VSM 300P-A20 | XR | API 20 | 10.88 | 809 | 1/2/3 | 4.6 |
Note: D100 = Particles this size and larger will normally be discarded. Conductance Number represents the ease with which liquid can flow through the screen (larger values = higher volume handling).
Compatible Shaker Models
- Brandt VSM 300: Lower deck screen (4 screens) for VSM 300 shale shaker
- Brandt VSM 300 Mud Cleaner: Compatible with VSM 300 mud cleaner systems
Application Scenarios
- Oil & Gas Drilling: Primary and secondary solids control for drilling fluid systems
- Onshore Drilling Rigs: Reliable performance in land-based drilling operations
- Offshore Platforms: Corrosion-resistant materials suitable for marine environments
- Directional Drilling: Efficient solids removal for complex well trajectories
- Deep Well Drilling: High-performance screening for demanding deep well applications
- Horizontal Drilling: Enhanced solids control for horizontal and extended reach wells
- Workover Operations: Efficient mud cleaning for well maintenance and repair
- Mud Cleaner Systems: Integrated solids control for drilling fluid treatment
