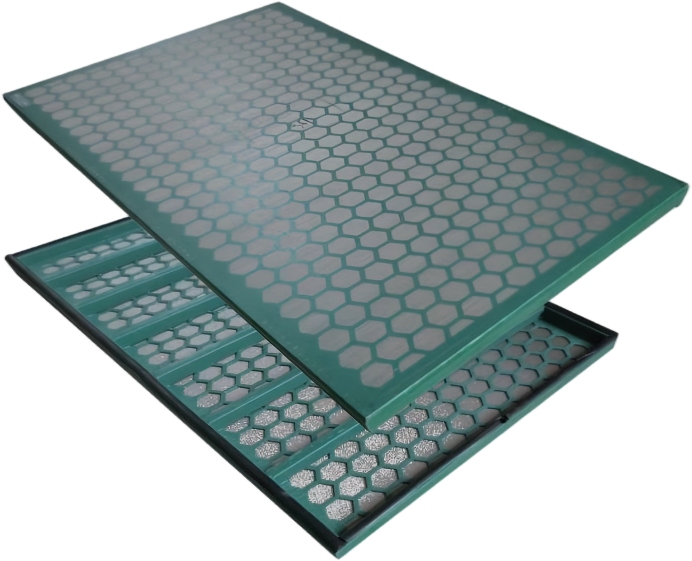

Brandt BLT-50/LCM-2D Shaker Screen
Premium Replacement Solids Control Equipment
The Brandt BLT-50/LCM-2D shaker screen is a high-performance replacement screen designed for Brandt BLT-50 and LCM-2D shale shakers. Featuring hexagonal perforated wear plate and SS 304/316 wire mesh cloth construction, these screens deliver superior solids control efficiency and extended service life for demanding drilling operations.
Manufactured with premium stainless steel 304/316/316L materials and Q235 steel body, compliant with API RP 13C standards, LCM-2D screens are available in API 60 to API 325 mesh designations. With a working life of 400-450 hours and 1-year warranty, these screens provide reliable performance for oil and gas drilling applications.
Product Features
- Premium Materials: Stainless steel 304/316/316L wire mesh for superior corrosion resistance
- Robust Body: Q235 steel body construction for enhanced durability
- Hexagonal Perforated Wear Plate: Advanced wear plate design for improved screening efficiency
- SS Wire Mesh Cloth: High-quality screen cloth technology for optimal separation
- API RP 13C Compliant: Meets industry standards for drilling fluid solids control equipment
- Extended Service Life: 400-450 hours working life for reduced replacement costs
- 1-Year Warranty: Quality assurance and manufacturer support
- Multiple Series Options: XR, XL series available for various applications
- Wide API Range: API 60 to API 325 mesh designations for diverse solids control needs
- Dual Compatibility: Fits both Brandt BLT-50 and LCM-2D shale shakers
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | KM-LCM-2D |
| Material | Stainless Steel 304/316/316L |
| Body Material | Q235 Steel |
| Standard | API RP 13C |
| API RP 13C Designation | API 60 – API 325 |
| Series Options | XR, XL (Optional) |
| Warranty Period | 1 Year |
| Working Life | 400–450 Hours |
| Compatible Shakers | Brandt BLT-50, LCM-2D Shale Shakers |
| Plate Design | Hexagonal Perforated Wear Plate |
Performance Parameters
| Screen Designation | Mesh Type | API Designation | Conductance | D100 (μm) | Layers | Non-Blank Area (sq.ft) |
|---|---|---|---|---|---|---|
| KM-LCM-2D-A325 | XR/XL | API 325 | 0.37 | 44 | 2/3 | 8.6 |
| KM-LCM-2D-A200 | XR/XL | API 200 | 0.54 | 72 | 2/3 | 8.6 |
| KM-LCM-2D-A170 | XR/XL | API 170 | 0.70 | 98 | 2/3 | 8.6 |
| KM-LCM-2D-A140 | XR/XL | API 140 | 1.14 | 104 | 2/3 | 8.6 |
| KM-LCM-2D-A120 | XR/XL | API 120 | 1.55 | 119 | 2/3 | 8.6 |
| KM-LCM-2D-A100 | XR/XL | API 100 | 2.04 | 147 | 2/3 | 8.6 |
| KM-LCM-2D-A80 | XR/XL | API 80 | 2.33 | 195 | 2/3 | 8.6 |
| KM-LCM-2D-A70 | XR/XL | API 70 | 2.85 | 223 | 2/3 | 8.6 |
| KM-LCM-2D-A60 | XR/XL | API 60 | 3.09 | 275 | 2/3 | 8.6 |
Note: D100 = Particles this size and larger will normally be discarded. Conductance Number represents the ease with which liquid can flow through the screen (larger values = higher volume handling).
Compatible Shaker Models
- Brandt BLT-50: Primary shale shaker for drilling fluid solids control
- Brandt LCM-2D: High-performance shale shaker for demanding drilling operations
Application Scenarios
- Oil & Gas Drilling: Primary and secondary solids control for drilling fluid systems
- Onshore Drilling Rigs: Reliable performance in land-based drilling operations
- Offshore Platforms: Corrosion-resistant materials suitable for marine environments
- Directional Drilling: Efficient solids removal for complex well trajectories
- Deep Well Drilling: High-performance screening for demanding deep well applications
- Horizontal Drilling: Enhanced solids control for horizontal and extended reach wells
- Workover Operations: Efficient mud cleaning for well maintenance and repair
- Geothermal Drilling: Suitable for high-temperature geothermal drilling applications
