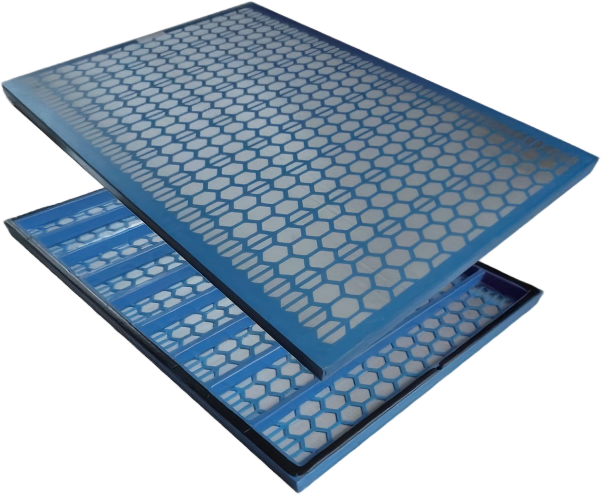

Brandt King Cobra/Hybrid Shaker Screen
Premium Replacement Solids Control Equipment
The Brandt King Cobra/Hybrid shaker screen is a high-performance replacement screen designed for Brandt King Cobra and Hybrid shale shakers. Featuring SS 304/316 wire mesh cloth with either ribbed back supporting frame (steel) or composite supporting frame (PT frame) construction, these screens deliver superior solids control efficiency and extended service life.
Manufactured with premium stainless steel 304/316/316L materials and Q235 steel/composite frame, compliant with API RP 13C standards, King Cobra screens are available in API 20 to API 325 mesh designations. With a working life of 400-450 hours and 1-year warranty, these screens provide reliable performance for demanding drilling operations.
Product Features
- Premium Materials: Stainless steel 304/316/316L wire mesh for superior corrosion resistance
- Dual Frame Options: Q235 steel frame or composite frame (PT frame) available
- Ribbed Back Design: Supporting frame with ribbed back for improved structural integrity
- SS Wire Mesh Cloth: Advanced screen cloth technology for optimal separation
- PT Frame Technology: Composite supporting frame for enhanced performance
- API RP 13C Compliant: Meets industry standards for drilling fluid solids control equipment
- Extended Service Life: 400-450 hours working life for reduced replacement costs
- 1-Year Warranty: Quality assurance and manufacturer support
- Multiple Series Options: XR, XL series available for various applications
- Wide API Range: API 20 to API 325 mesh designations for diverse solids control needs
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | KM-KC/Hybrid |
| Material | Stainless Steel 304/316/316L |
| Frame Material | Q235 Steel / Composite |
| Standard | API RP 13C |
| API RP 13C Designation | API 120 – API 325 |
| Series Options | XR, XL (Optional) |
| Warranty Period | 1 Year |
| Working Life | 400–450 Hours |
| Compatible Shakers | Brandt King Cobra/Hybrid Shale Shakers |
| Frame Design | Ribbed Back / PT Frame / Composite |
Performance Parameters
| Screen Designation | Mesh Type | API Designation | Conductance | D100 (μm) | Non-Blank Area (sq.ft) |
|---|---|---|---|---|---|
| KM-KC/Hybrid-A325 | XR/XL | API 325 | 0.33 | 44 | 5.95 |
| KM-KC/Hybrid-A270 | XR/XL | API 270 | 0.42 | 54 | 5.95 |
| KM-KC/Hybrid-A230 | XR/XL | API 230 | 0.45 | 61 | 5.95 |
| KM-KC/Hybrid-A200 | XR/XL | API 200 | 0.62 | 72 | 5.95 |
| KM-KC/Hybrid-A170 | XR/XL | API 170 | 1.02 | 86 | 5.95 |
| KM-KC/Hybrid-A140 | XR/XL | API 140 | 1.03 | 106 | 5.95 |
| KM-KC/Hybrid-A120 | XR/XL | API 120 | 1.40 | 134 | 5.95 |
| KM-KC/Hybrid-A100 | XR/XL | API 100 | 1.67 | 159 | 5.95 |
| KM-KC/Hybrid-A80 | XR/XL | API 80 | 2.36 | 193 | 5.95 |
| KM-KC/Hybrid-A70 | XR/XL | API 70 | 2.78 | 230 | 5.95 |
| KM-KC/Hybrid-A60 | XR/XL | API 60 | 3.35 | 274 | 5.95 |
| KM-KC/Hybrid-A50 | XL | API 50 | 4.91 | 296 | 5.95 |
| KM-KC/Hybrid-A35 | XL | API 35 | 9.13 | 529 | 5.95 |
| KM-KC/Hybrid-A20 | XL | API 20 | 11.77 | 781 | 5.95 |
Note: D100 = Particles this size and larger will normally be discarded. Conductance Number represents the ease with which liquid can flow through the screen (larger values = higher volume handling).
Compatible Shaker Models
- Brandt King Cobra: High-performance shale shaker for demanding drilling operations
- Brandt Hybrid: Advanced shale shaker combining multiple screening technologies
Application Scenarios
- Oil & Gas Drilling: Primary and secondary solids control for drilling fluid systems
- Onshore Drilling Rigs: Reliable performance in land-based drilling operations
- Offshore Platforms: Corrosion-resistant materials suitable for marine environments
- Directional Drilling: Efficient solids removal for complex well trajectories
- Deep Well Drilling: High-performance screening for demanding deep well applications
- Horizontal Drilling: Enhanced solids control for horizontal and extended reach wells
- Workover Operations: Efficient mud cleaning for well maintenance and repair
- Geothermal Drilling: Suitable for high-temperature geothermal drilling applications
