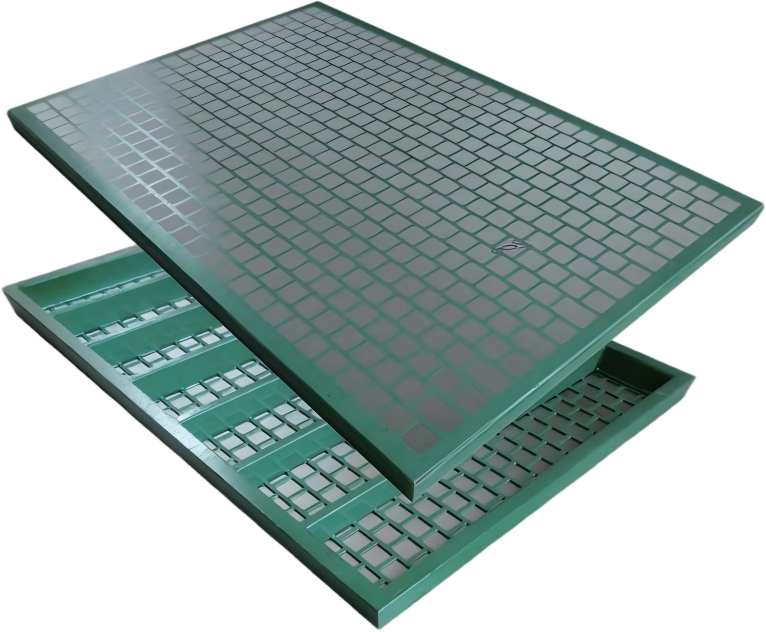

Brandt D380/D285P Shaker Screen
Premium Replacement Solids Control Equipment
The Brandt D380/D285P shaker screen is a high-performance replacement screen designed for NOV Brandt D380 and D285P shale shakers. Featuring ribbed back supporting frame and SS 304/316 wire mesh cloth construction, these screens deliver superior solids control efficiency and extended service life for demanding drilling operations.
Manufactured with premium stainless steel 304/316/316L materials and Q235 steel frame, compliant with API RP 13C standards, D380 screens are available in API 20 to API 325 mesh designations. With a working life of 400-450 hours and 1-year warranty, these screens provide reliable performance for oil and gas drilling applications.
Product Features
- Premium Materials: Stainless steel 304/316/316L wire mesh for superior corrosion resistance
- Robust Frame: Q235 steel frame construction for enhanced durability
- Ribbed Back Design: Supporting frame with ribbed back for improved structural integrity
- SS Wire Mesh Cloth: Advanced screen cloth technology for optimal separation
- API RP 13C Compliant: Meets industry standards for drilling fluid solids control equipment
- Extended Service Life: 400-450 hours working life for reduced replacement costs
- 1-Year Warranty: Quality assurance and manufacturer support
- Multiple Series Options: XR, XL series available for various applications
- Wide API Range: API 20 to API 325 mesh designations for diverse solids control needs
- Dual Compatibility: Fits both Brandt D380 and D285P shale shakers
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | KM-D380 |
| Material | Stainless Steel 304/316/316L |
| Frame Material | Q235 Steel |
| Standard | API RP 13C |
| API RP 13C Designation | API 20 – API 325 |
| Series Options | XR, XL (Optional) |
| Warranty Period | 1 Year |
| Working Life | 400–450 Hours |
| Compatible Shakers | NOV Brandt D380, D285P Shale Shakers |
| Frame Design | Ribbed Back Supporting Frame |
Performance Parameters
| Screen Designation | Mesh Type | API Designation | Conductance | D100 (μm) | Non-Blank Area (sq.ft) |
|---|---|---|---|---|---|
| KM-D380-A325 | XL | API 325 | 0.44 | 44 | 5.8 |
| KM-D380-A270 | XR | API 270 | 0.67 | 57 | 5.8 |
| KM-D380-A230 | XR | API 230 | 0.71 | 68 | 5.8 |
| KM-D380-A200 | XR | API 200 | 1.32 | 73 | 5.8 |
| KM-D380-A170 | XR | API 170 | 1.34 | 83 | 5.8 |
| KM-D380-A140 | XR | API 140 | 1.89 | 101 | 5.8 |
| KM-D380-120 | XR | API 120 | 1.89 | 134 | 5.8 |
| KM-D380-A100 | XR | API 100 | 2.66 | 164 | 5.8 |
| KM-D380-A80 | XR | API 80 | 2.76 | 193 | 5.8 |
| KM-D380-A70 | XR | API 70 | 3.33 | 203 | 5.8 |
| KM-D380-A60 | XR | API 60 | 4.10 | 268 | 5.8 |
| KM-D380-A50 | XR | API 50 | 5.17 | 285 | 5.8 |
| KM-D380-A40 | XR | API 40 | 8.64 | 439 | 5.8 |
| KM-D380-A35 | XR | API 35 | 9.69 | 538 | 5.8 |
| KM-D380-A20 | XR | API 20 | 10.88 | 809 | 5.8 |
Note: D100 = Particles this size and larger will normally be discarded. Conductance Number represents the ease with which liquid can flow through the screen (larger values = higher volume handling).
Compatible Shaker Models
- NOV Brandt D380: Primary shale shaker for drilling fluid solids control
- NOV Brandt D285P: High-performance shale shaker for demanding drilling operations
Application Scenarios
- Oil & Gas Drilling: Primary and secondary solids control for drilling fluid systems
- Onshore Drilling Rigs: Reliable performance in land-based drilling operations
- Offshore Platforms: Corrosion-resistant materials suitable for marine environments
- Directional Drilling: Efficient solids removal for complex well trajectories
- Deep Well Drilling: High-performance screening for demanding deep well applications
- Horizontal Drilling: Enhanced solids control for horizontal and extended reach wells
- Workover Operations: Efficient mud cleaning for well maintenance and repair
- Geothermal Drilling: Suitable for high-temperature geothermal drilling applications
