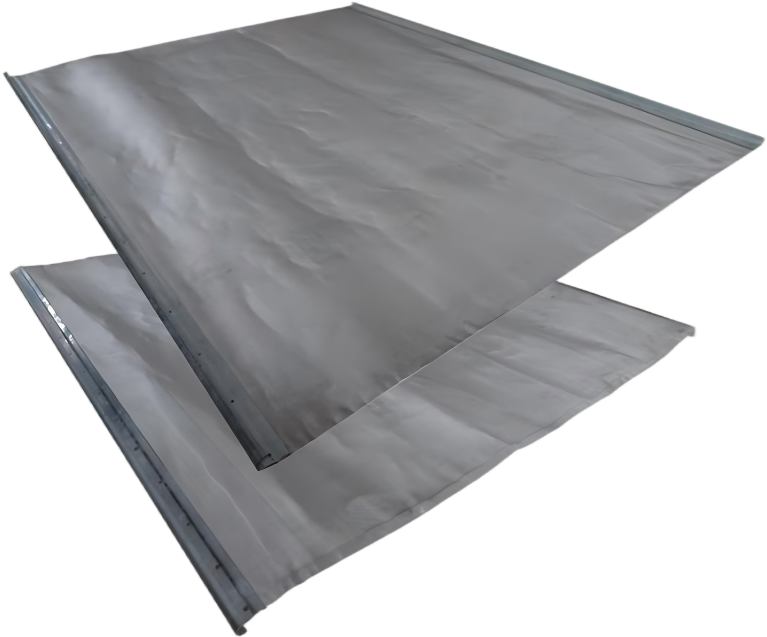

Brandt B40 Shaker Screen
Premium Replacement Solids Control Equipment
The Brandt B40 shaker screen is a high-performance replacement screen designed for Brandt 4' × 5'/B40 shale shakers. Featuring SS wire mesh cloth and steel frame construction, these screens deliver superior solids control efficiency and extended service life for demanding drilling operations.
Manufactured with premium stainless steel 304/316/316L materials and Q235 steel body, compliant with API RP 13C standards, B40 screens are available in API 120 to API 325 mesh designations. With a working life of 400-450 hours and 1-year warranty, these screens provide reliable performance for water-based drilling environments.
Product Features
- Premium Materials: Stainless steel 304/316/316L wire mesh for superior corrosion resistance
- Robust Body: Q235 steel frame construction for enhanced durability
- SS Wire Mesh Cloth: Advanced screen cloth technology for optimal separation
- Steel Frame Design: Robust frame ensures secure installation and extended service life
- API RP 13C Compliant: Meets industry standards for drilling fluid solids control equipment
- Water-Based Environment: Suitable for water-based drilling fluid applications
- Extended Service Life: 400-450 hours working life for reduced replacement costs
- 1-Year Warranty: Quality assurance and manufacturer support
- Multiple Series Options: XR, XL, MG series available for various applications
- Wide API Range: API 120 to API 325 mesh designations for diverse solids control needs
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | KM-B40 |
| Material | Stainless Steel 304/316/316L |
| Body Material | Q235 Steel |
| Suitable Environment | Water-Based |
| Standard | API RP 13C |
| API RP 13C Designation | API 120 – API 325 |
| Series Options | XR, XL, MG (Optional) |
| Warranty Period | 1 Year |
| Working Life | 400–450 Hours |
| Compatible Shakers | Brandt 4' × 5'/B40 Shale Shaker |
Performance Parameters
| Screen Designation | Mesh Type | API Designation | Conductance | D100 (μm) | Layers | Non-Blank Area (sq.ft) |
|---|---|---|---|---|---|---|
| KM-B40-A325 | XR/XL | API 325 | 0.39 | 44 | 2/3 | 14.4 |
| KM-B40-A270 | XR/XL | API 270 | 0.51 | 57 | 2/3 | 14.4 |
| KM-B40-A230 | XR/XL | API 230 | 0.66 | 61 | 2/3 | 14.4 |
| KM-B40-A200 | XR/XL | API 200 | 1.32 | 73 | 2/3 | 14.4 |
| KM-B40-A170 | XR/XL | API 170 | 0.99 | 88 | 2/3 | 14.4 |
| KM-B40-A140 | XR/XL | API 140 | 1.21 | 116 | 2/3 | 14.4 |
| KM-B40-A120 | XR/XL | API 120 | 1.87 | 117 | 2/3 | 14.4 |
Note: D100 = Particles this size and larger will normally be discarded. Conductance Number represents the ease with which liquid can flow through the screen (larger values = higher volume handling).
Compatible Shaker Models
- Brandt 4' × 5'/B40: Primary shale shaker for drilling fluid solids control
Application Scenarios
- Oil & Gas Drilling: Primary and secondary solids control for drilling fluid systems
- Onshore Drilling Rigs: Reliable performance in land-based drilling operations
- Offshore Platforms: Corrosion-resistant materials suitable for marine environments
- Water-Based Drilling: Optimized for water-based drilling fluid applications
- Directional Drilling: Efficient solids removal for complex well trajectories
- Deep Well Drilling: High-performance screening for demanding deep well applications
- Horizontal Drilling: Enhanced solids control for horizontal and extended reach wells
- Workover Operations: Efficient mud cleaning for well maintenance and repair
